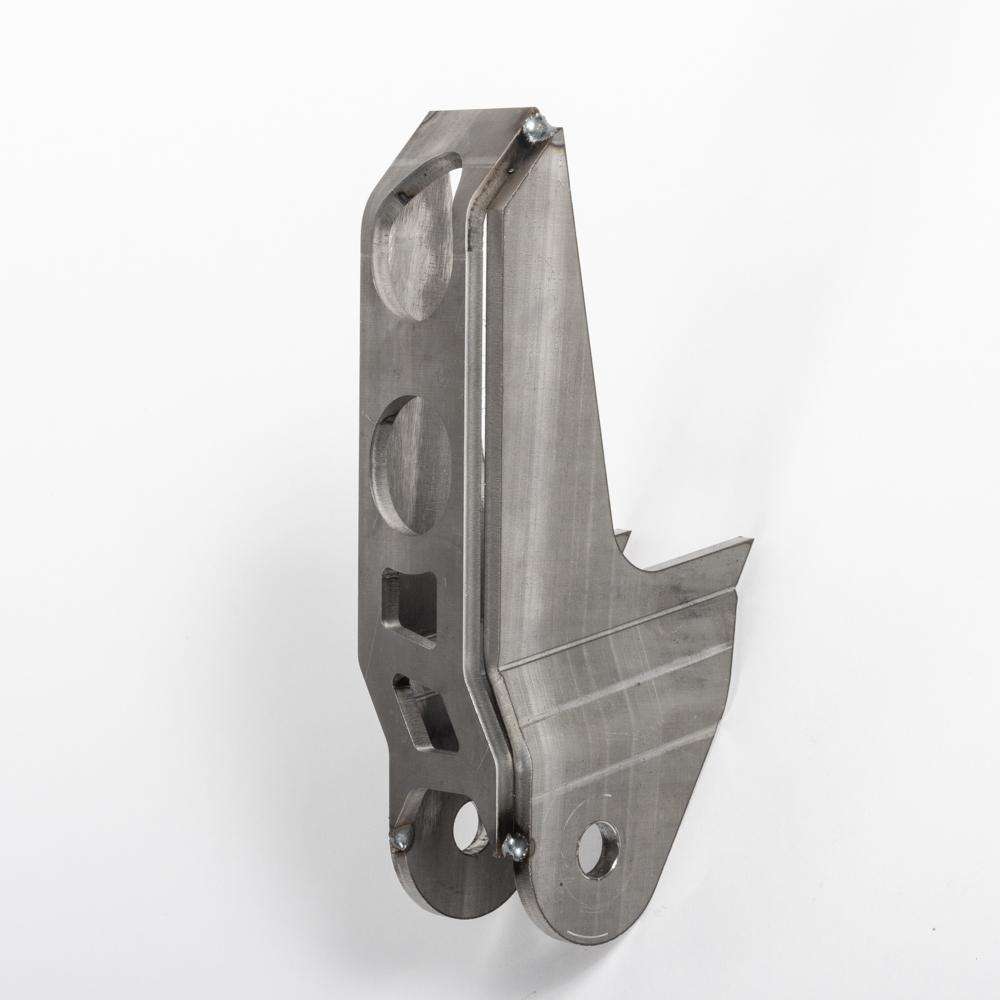

JK 1 TON Swap - Frame Track Bar Bracket - FRONT
- CNC laser cut and formed from 1/4" steel
- Ships unwelded for ease of modification if necessary
- Fits 1.6" wide joint with 9/16" bore

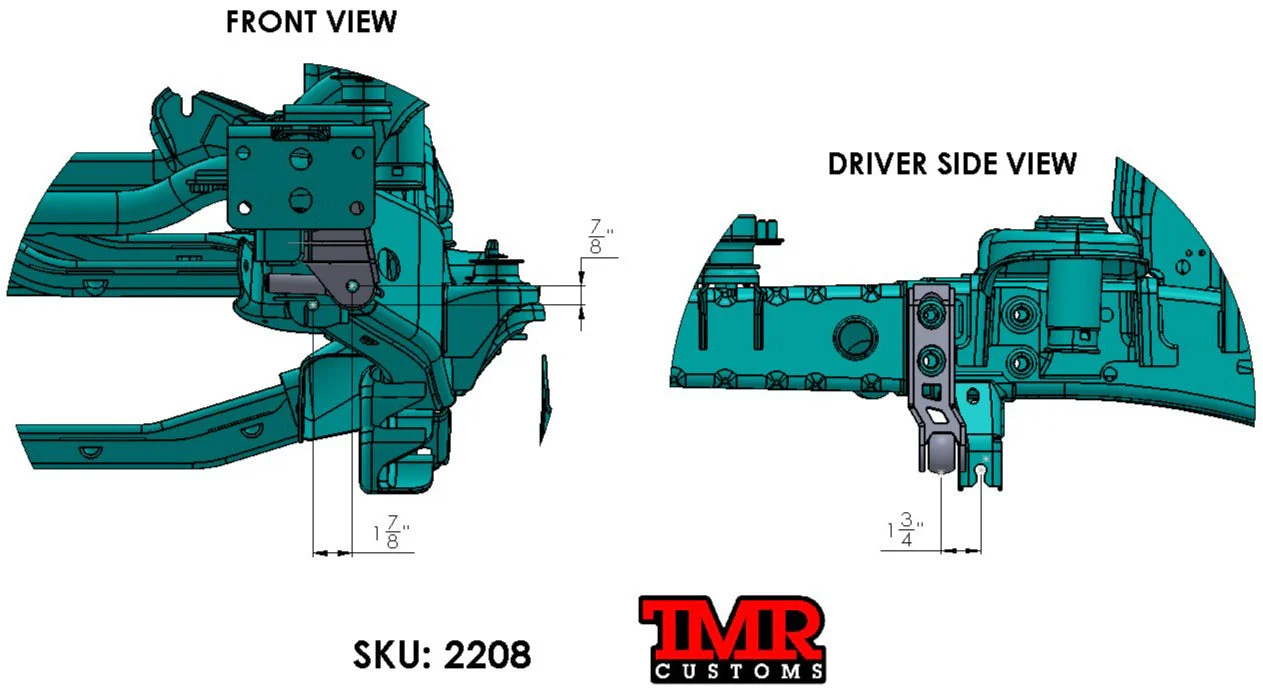

Compared to the factory bracket - our bracket moves forward 1.75", moves out 1.75" (for longer bar), moves up .875" (for diff clearance).We found this to be the sweet spot for the longest bar that will clear an anti rock arm, the d60 housing and the pitman arm!
**Will require modification to your existing track bar or the fabrication of a new track bar! Will not work with stock sway bar!
- CNC laser cut and formed from 1/4" steel
- Ships unwelded for ease of modification if necessary
- Fits 1.6" wide joint with 9/16" bore
Compared to the factory bracket - our bracket moves forward 1.75", moves out 1.75" (for longer bar), moves up .875" (for diff clearance).We found this to be the sweet spot for the longest bar that will clear an anti rock arm, the d60 housing and the pitman arm!
**Will require modification to your existing track bar or the fabrication of a new track bar! Will not work with stock sway bar!
$31.50
Original: $89.99
-65%JK 1 TON Swap - Frame Track Bar Bracket - FRONT—
$89.99
$31.50Description
- CNC laser cut and formed from 1/4" steel
- Ships unwelded for ease of modification if necessary
- Fits 1.6" wide joint with 9/16" bore
Compared to the factory bracket - our bracket moves forward 1.75", moves out 1.75" (for longer bar), moves up .875" (for diff clearance).We found this to be the sweet spot for the longest bar that will clear an anti rock arm, the d60 housing and the pitman arm!
**Will require modification to your existing track bar or the fabrication of a new track bar! Will not work with stock sway bar!
