14 Bolt Simple Truss Kit & Pinion Guard - TMR Customs

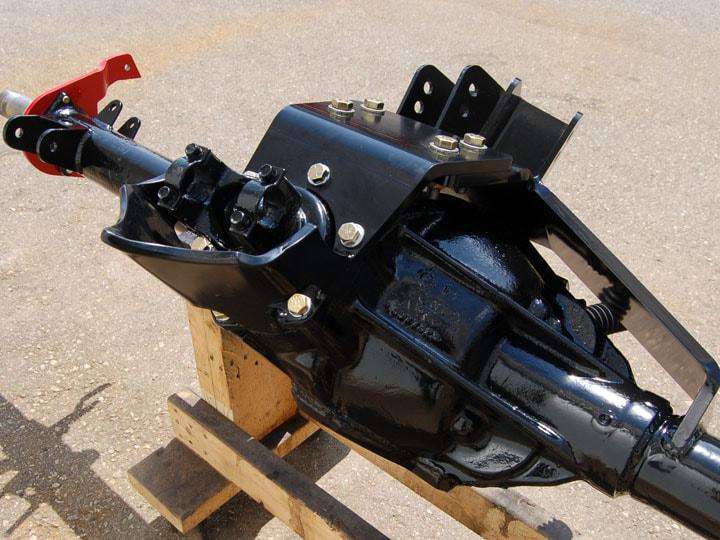

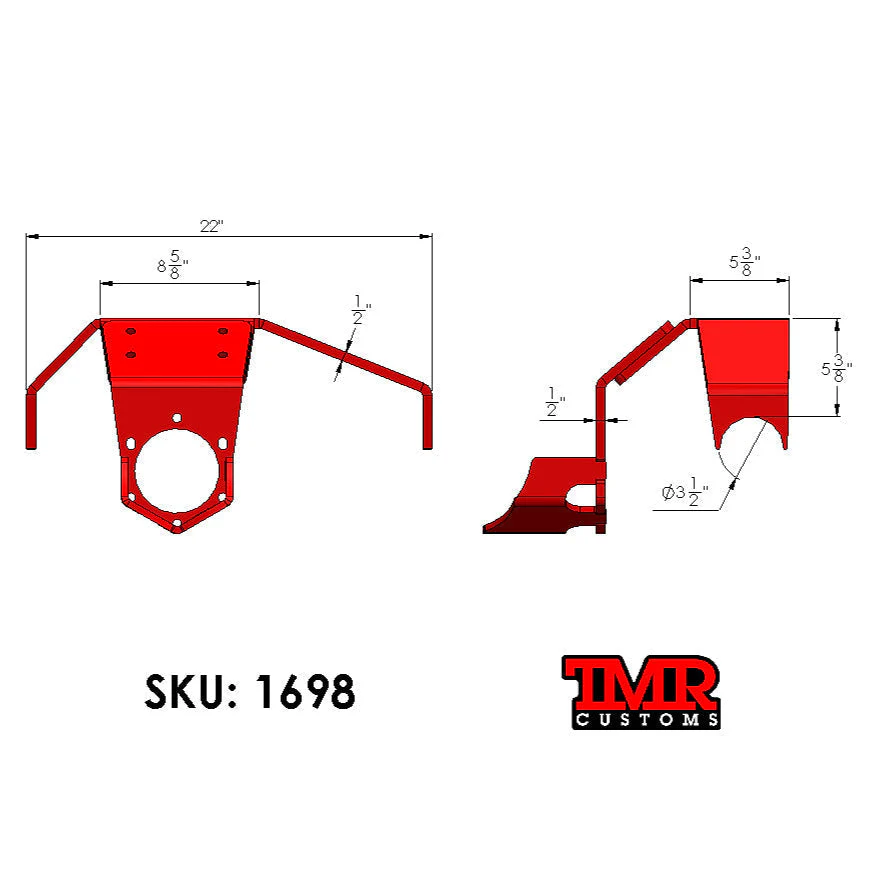

This 14-Bolt Simple Truss Kit includes all the necessary grade 8 fasteners and includes a 3/8" thick Pinion Guard. It is CNC laser cut and formed from 1/2" high strength steel plate for the ultimate in strength and rigidity.

Installation Notes: Upon receiving your truss kit, please proceed with the following order of installation:

1. Bolt pinion tie-in plate to pinion support using the supplied grade 8 fasteners

2. Attempt to fit in the main truss (grinding of the main truss "ears" may be required for a perfect fit)

3. After fitting the main truss and pinion support together, drill 4 x 1/2" holes and bolt the 2 pieces together with the supplied grade 8 fasteners

By following these steps, we can guarantee a perfect fit and ensure you have the strongest truss/pinion tie-in on the market!

Also, be sure to check out our other axle truss kits and axle/drivetrain products.
